Frigoboat K35F Keel Cooled Compressor w/ Manual Speed Board Frigoboat K35F Keel Cooled Compressor w/ Manual Speed Board

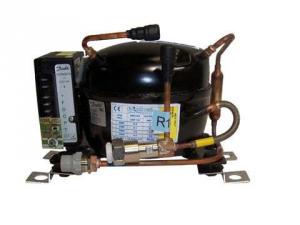

Frigoboat K35F Keel Cooled Compressor w/ Manual Speed Board


MFG#: E50345X
SKU:



$1,015.00 $924.95 Captain's Price!
Qty
Bookmark This Page Tell A Friend Rate This Product

The Frigoboat K35F compressor is used with a Keel Cooler condenser (purchased separately) to provide your boat with super efficient refrigeration. Unique to Frigoboat, the K35F combined with a keel cooler eliminates the need for an independent sea water pump and has unrivaled performance as a marine refrigeration system. The additional oil cooler (keel cooler) results in smoother running and extended service life. Although water is being used for the heat transfer, it is staying outside your boat at all times. No pump, no noise, no strainers to clean.

The Frigoboat K35F is designed for refrigerator boxes up to 7 cu ft or freezer boxes up to 4 cu ft with good insulation.

The Frigoboat K35F comes standard with a manual speed control board that is adjustable with a small screwdriver allowing for setting a constant compressor speed from 2,000 RPM to 3,500 RPM.

Recommended options are the Merlin II Smart Speed Controller (E52152).

The Merlin II Smart Speed Control board gives you automatic speed selection for the K50F compressor. It runs the compressor fast when the set point and actual box temperature are significantly different and runs it slow when all you're doing is maintaining the box's set temperature. The Merlin II gives big energy savings while also protecting the compressor electronics and reducing stress on components. As a bonus, the Merlin II comes with a fault indicator light for when the compressor stops for a fault reason, Red LED will blink 1-5 times to let you know where to look for the problem.


Features

  • Danfoss/Secop compressor of the latest generation
  • Electrical consumption 25% lower compared to other compressors.
  • Pre-charged system equipped with Frigoboat self sealing couplings
  • Uses non-ozone depleting refrigerant R134a
  • Automatically runs on 12 to 24 volts DC
  • Automatic battery protection
  • Units are 10-1/4" L x 5-5/8" W x 6-5/8" H, weigh 12.7 lbs
  • Designed for continuous duty operation at up to 30° heel
  • Requires Keel-Cooled Condenser, Evaporator and Thermostat for complete system

Options and Accessories
Product SKU Captain's Price Options Qty
Frigoboat Keel Cooler, No Zincs, 2-1/2" Threaded Shaft $588.95
Frigoboat Merlin II Smart Speed Controller $145.00
Frigoboat Keel Cooler w/ Zincs, 2-1/2" Threaded Shaft $601.95
Keel Cooler (bare bones) $450.95
Zinc Screws, Set of 2 for Keel Cooler $2.50
Zincs, Set of 2 for Keel Cooler $16.00
Frigoboat Add-On Air Condenser for Keel Cooled or Pumped-Water System
Out Of Stock
$341.95
Frigoboat Mounting Bracket for mounting K and W on bulkheads stainless steel $70.00
LED Diagnostic Fault Light Assembly $10.00
