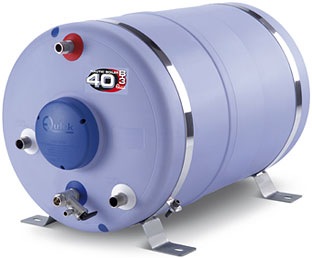

Quick Nautic B3 Water Heaters
The new Quick Nautic B3 Water Heaters are the simplest and safest answer to guaranteed
hot water on board. Manufactured of the highest quality materials with superior
construction, Quick B3 Boilers will deliver years of trouble free service.
The Quick B3 exterior shell is a rust proof composite material and the tank is
in AISI 316 stainless steel. The heat exchanger capacity is notably higher than
that achieved from other manufactures. The tank is made of 1.5 mm gauge AISI 316
stainless steel welded with Argon shielding gas and is highly resistant to corrosive
agents. The electrical heating element is made of Incoloy®. The thermal insulation
is high density polyurethane foam injected between the cover and tank giving excellent
heat retention properties.

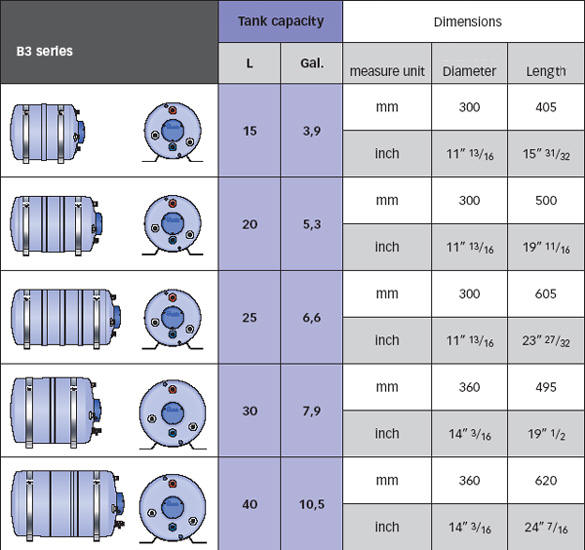

The Quick B3 Nautic Boilers are produced in versions of 15, 20, 25, 30 and 40
litres and are guaranteed for 3 years.
Features
- High quality materials.
- Casing in composit material
- Tank in Aisi 316 stainless steel
- Heat exchanger with wide exchange surface.
- Produces hot water from the electric element, that is fitted with an adjustable
safety thermostat.
- Relief / non-return vale that allows discharging of the water heater in
case of disuse.
- AISI 316 stainless steel mounting brackets standard.
- Wall or Floor mountable
- 3 Year Quick Warranty
- Tank pressure (running test): 800 kPa
- Maximum working pressure: 600 kPa
- Electric element voltage rating: 220 Vac +/- 10% [ - ] / 110 Vac +/- [ L
]
- Electric element power: 600 W or 1200 W
- Outputs diameter: 1/2"
|
