Selection
When selecting Surface SKYscreen it is important to establish the type and manufacturer of hatch, dimensions, mounting location and interior design. For a precision fit of liner installations the details of the corner radii and X and Y dimensions are required.

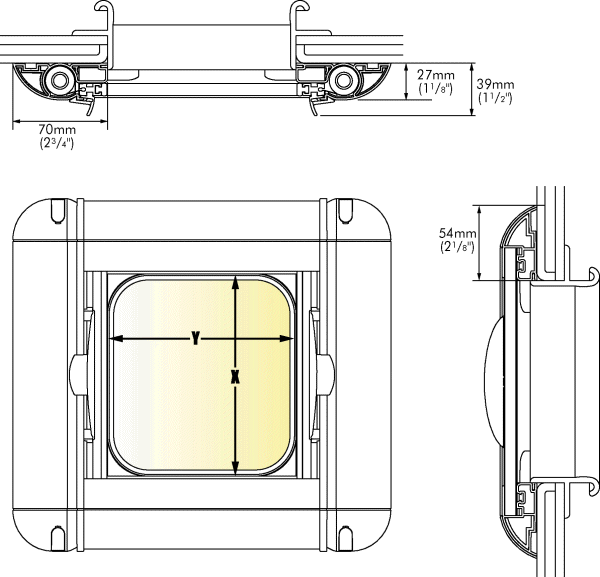

Overall dimensions of your SURFACE Skyscreen are
Part Nos Manufacturer

Internal Clearance
 X x Y

Overall Dimension
  X x Y

SFSS-10 Lewmar 10 1/4" x 10 1/4 " 14 1/2" x 15 3/4"
SFSS-20 Lewmar 13 5/8" x 8" 17 7/8" x 13 1/2"
SFSS-30 Lewmar 18" x 12 7/8" 22 1/4" x 18 3/8"
SFSS-40 Lewmar 16 5/8" x 16 5/8" 20 7/8" x 22 1/8"
SFSS-44 Lewmar 17 3/8" x 17 3/8" 21 5/8" x 22 7/8"
SFSS-50 Lewmar 20" x 14 7/8" 24 1/4" x 20 3/8"
SFSS-54 Lewmar 20" x 15 3/8" 24 1/4" x 20 7/8"
SFSS-60 Lewmar 20" x 20" 24 1/4" x 25 1/2"
SFSS-70 Lewmar 24 5/8" x 24 5/8" 28 7/8 x 30 1/8"

SFSS-1000 Bomar 10 3/8" x 10 3/8" 14 5/8" x 15 7/8"
SFSS-1011 Bomar 9 1/8" x 14 3/8" 13 3/8" x 19 7/8"
SFSS-1029 Bomar 18 1/2" x 13 3/8" 24  x 17 5/8"
SFSS-1040 Bomar 15 3/8" x 20 5/8" 19 5/8" x 26 1/8"
SFSS-1070 Bomar 16 1/2" x 16 1/2" 20 3/4" x 22'
SFSS-1080 Bomar 18 1/2" x 18 1/2" 22 3/4" x 24"
SFSS-1039 Bomar 20 1/4" x 20 1/4" 24 1/2" x 25 3/4
SFSS-1049 Bomar 25 1/8" x 25 1/8" 29 3/8" 30 5/8"

SFSS-12/12 Taylor 12" x 12 " 16 1/4" x 17 1/2"
SFSS-17/17 Taylor 16 7/8" x 16 7/8" 21 1/8" x 22 3/8"
SFSS-20/20 Taylor 20" x 20" 24 1/4" x 25 1/2"
SFSS-22/22 Taylor 22 1/4" x 22 1/4" 26 1/2" x 27 3/4"
X + 4 1/4" and Y + 5 1/4"
