Icom M510 VHF Bundle w/CT-M500 Wireless Interface Box f/NMEA 2000
Icom M510 VHF Bundle w/CT-M500 Wireless Interface Box f/NMEA 2000

Icom M510 VHF Bundle w/CT-M500 Wireless Interface Box f/NMEA 2000

DISCONTINUED

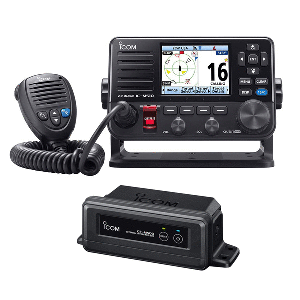

M510 VHF Bundle with CT-M500 Wireless Interface Box for NMEA 2000

Icom M510 VHF Marine Radio

Icom’s Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface, providing casual and serious boaters alike with plenty of options to communicate.

Use the RS-M500 app (for iOS/Android) to remotely control the M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in place of the COMMANDMIC.

An intercom function between a smart device and the radio is also available.

Interface Box for NMEA 2000

The CT-M500 wireless interface box provides NMEA 2000 connectivity and a Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.

Features:

  • Large color display - 3.5" TFT LCD
  • S-M500 app ( iOS or Android) allows users to connect three (3) smart devices to function as a wireless command speaker/microphone
  • Hand microphone with AquaQuake
  • Front and back microphone connection ports
  • Optional voice scrambler
  • External speaker connection
  • Supports 4-digit channels
  • Option to connect external GPS

M510 VHF Marine Radio Technical Specifications:

  • Output Power: 25W
  • Frequency Range: Transmit - 156.025 to 157.425 MHz
  • Frequency Range: Receive - 156.050 to 163.275 MHz
  • Waterproof Rating: IP68
  • GPS: Built-in
  • WLAN: Built-in
  • Connectivity: NMEA 0183 (NMEA 2000 with the addition of the CT-M500)

CT-M500 Technical Specifications:

  • Power Supply Requirements: 11.7 to 15.9 V
  • Waterproof Rating: IPX7
  • Dimensions (W x H x D): 6.2" x 2.7" 3.2" (15.7 x 6.76 x 8.21 cm)
  • Weight: 5.2 oz (430 g)

In the Box:

  • M510 VHF radio
  • Icom CT-M500 Wireless Interface Box
  • Speaker microphone (HM-250RB)
  • DC Power cable
  • Microphone hanger
  • Mounting bracket kit
  • Instruction manual
