Lofrans CAYMAN Windlass Lofrans CAYMAN Windlass, 1000W - 12VDC

Lofrans CAYMAN Windlass, 1000W - 12VDC


MFG#: LW300AN
SKU:


$3,475.00 $2,849.50 Captain's Price!
Specify chain size and chain type. Qty
Bookmark This Page Tell A Friend Rate This Product

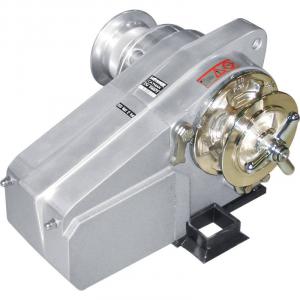

The Lofrans Cayman is a very popular horizontal windlass with many boat builders world-wide. Available with a 1000 watt 12VDC or 24VDC reversing motor allowing the anchor to be released electrically. Can also be released manually. The rope drum can be used independently of the gypsy. Supplied complete with handle and control box.


Downloads:
Chainwheel Chart 63 KB
Dimensional Drawing 58 KB
Owners Manual 778 KB
Parts Breakdown 134 KB
Parts List 108 KB
Product Catalog 446 KB
Wiring Diagram 70 KB

 Product Details - LW300AN
Version: Cayman, Anodized, 12V, 1000W
Voltage: 12V
Motor Wattage: 1000W
Power Rating: 1385 lbs (630 kg)
Standard Equipment: Watertight Control Box, (2)Footswitches, Chainwheel & Manual Override w/Handle
Working Load: 220 lbs (100 kg)
Amperes @ No Load: 60
Amperes @ Working Load: 115
Retrieval Speed @ No Load: 105 ft/min (32 m/min)
Retrieval Speed @ Working Load: 59 ft/min (18 m/min)
Max. Deck Thickness:
Chain Sizes: 1/4HT, 5/16ALL, 3/8ALL
Rope Sizes: N/A
Weight: 42 lbs.
