Lofrans FALKON Lofrans FALKON Windlass, 1700W - 12VDC

Lofrans FALKON Windlass, 1700W - 12VDC


MFG#: LW500AN
SKU:


$7,450.00 $6,109.00 Captain's Price!
Specify chain size and chain type. Qty
Bookmark This Page Tell A Friend Rate This Product

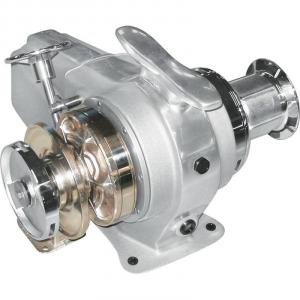

The Lofrans Falkon horizontal windlass is made of a special sea water-resistant light alloy and finished in polished anodized or white polyester coating for added protection. The Lofrans Falkon is available with a powerful 1500 watt 12VDC or 24VDC reversing motor allowing the anchor to be released electrically as well as manually. A convenient sight glass allows easy visual inspection of oil level. The rope drum can be used independently of gypsy. Supplied with handle and control box.

Downloads:
Chainwheel Chart 63 KB
Dimensional Drawing 66 KB
Owners Manual 778 KB
Parts Breakdown 175 KB
Parts List 108 KB
Product Catalog 446 KB
Wiring Diagram 70 KB

Product Details - LW500AN
Version: Falkon, Anodized, 12V, 1500W
Voltage: 12V
Motor Wattage: 1500W
Power Rating: 2310 lbs (1050 kg)
Standard Equipment: Watertight Control Box, (2)Footswitches, Chainwheel & Manual Override w/Handle
Working Load: 330 lbs (150 kg)
Amperes @ No Load: 65
Amperes @ Working Load: 135
Retrieval Speed @ No Load: 102 ft/min (31 m/min)
Retrieval Speed @ Working Load: 62 ft/min (19 m/min)
Max. Deck Thickness:
Chain Sizes: 5/16ALL, 3/8ALL, 7/16HT, 1/2HT, 1/2BBB
Rope Sizes: N/A
Weight: 99 lbs. SHIPS COMMON CARRIER
 Note: This unit ships Common Carrier and is shrink wrapped and banded to a pallet. Delivery requires fork lift and/or a loading dock.
Freight charges will be quoted for approval prior to processing your order.
