Designed for sailboats over 30' (9m) and larger

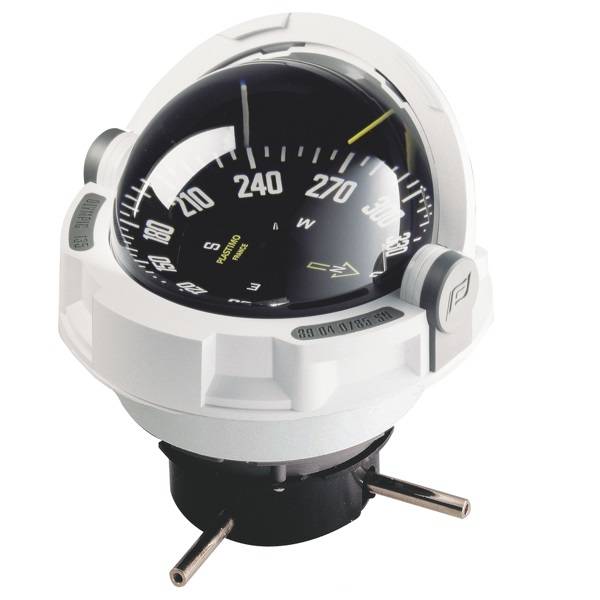

The Plastimo Olympic 135 Compass is specifically designed for flush mounting or binnacle mounting. It features an exceptionally steady and crisp, legible 5.2" diameter card in black or red. The Plastimo Olympic 135 Compass is available with red lighting on the black card and white lighting on the red card.
|
WHY CHOOSE AN OLYMPIC COMPASS?
- The world-famous Plastimo flat card with the 5° graduation make reading very easy, even from afar.
- 1 fore-and-aft line and 3 lubber lines at 45° providing perfect visibility whatever the angle
- Horizontal reading on flat cards -slightly dished- for a perfect readability
- The directional system of the compass is mounted on a spring, for maximum absorption of shocks and vibrations
- Full clearance through internal gimbals
- A special diaphragm allows the expansion and contraction of the fluid and prevents the formation of bubbles
- For binnacle mount compasses, "tunnel rods" through the binnacle provide easy access to compensators
Also supplied as standard
- 12VDC lighting, corrosion proof. Lifetime of bulbs: around 5000 hours
- Compensation
|
| |
OLYMPIC 135 |
| Boat size |
30 ft + (9 m)
|
| Compass card |
Flat card, graduated every 5°
Apparent Ø130 mm.
Heading numerals every 30°. |
| Hood / sunshade |
Unique articulated protective hood : built-in sliding cover, composed of 3 telescopic parts. |
| Mounting |
Pedestal mounting or minimal height flush mounting.
Choice of 2 binnacles (96 mm high) ;
Pedestal Ø 175 mm. |
| Lubber lines |
3 lubber lines, at 45° |
| Compensation |
Supplied as standard |
| Lighting |
12 or 24 Vdc.
2 bulbs : red lighting on black card,
white lighting on red card. |
| Supplied with |
Drilling template |
| Homologation |
SOLAS-MED 96/98 |
|
