TRIANC3.jpg Signal Mate LED 2NM Tri-Color  Navigation Light w/Anchor

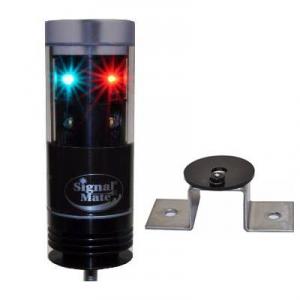

Signal Mate LED 2NM Tri-Color Navigation Light w/Anchor


MFG#: TRIANC3
SKU:


$351.00 $251.95 Captain's Price!
Qty
Bookmark This Page Tell A Friend Rate This Product

Combination Tri-Color with Anchor (3-wire installation) 2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for sailboats up to 20 meters (65 feet). The light also has a built in Windex illumination window for night time sailing. Used by recreational vessels worldwide.

Specifications

  • Visibility: 2NM Combination Tri-Color & Anchor LED Navigation Light
  • Certified: USCG Certified, ABYC A-16, 72 COLREGS
  • Boat type: sailboat vessels to 20 meters (65 feet).
  • Horizontal Viewing Angle: 112.5/ 112.5/ 135/ 360 degrees.
  • Windex Illumination: Built in illumination window.
  • Voltage Range: 10-30 VDC
  • Current Draw: 0.300 amps at 12 VDC
  • Protection: Polarity & 1500 watt surge
  • LED: High Brightness 50,000 hours
  • LEDs: 3
  • Watts: 3
  • Color: Red, Cyan, White.
  • LEDs: 3
  • Watts: 3
  • Color: White
  • Led Driver: Constant Current.
  • EMI: Active filtering.
  • Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
  • Wiring: 2.5 feet, 3 wire, 20 AWG tinned, UV jacket marine wire.
  • Installation: 3 wire
  • Durability: Water & Vibration proof.
  • Dimensions: Height 4.5” x 1.5” Diameter
  • Weight: 8.2 oz
  • Mounting: ¼” x 20 female threads on bottom of light for mounting.
  • Bracket Included: BRKT360
  • Brackets Optional: PADPT1, PADPT75
  • 5 Year Warranty
  • Made in USA
