winchr1.jpg WinchRite ABT Electric Winch Handle

WinchRite ABT Electric Winch Handle
Model: WINCHRITE


$749.00
Qty
Bookmark This Page Tell A Friend Rate This Product

WinchRite - Electrify Your Winches!

2010 NMMA Innovation Award!
Wwinchr3.jpghat makes the WinchRite Cordless Winch Handle superior?
Simple Answer: DESIGN!

Designed specifically for use on a sailboat's winches, it achieves 110+NM of torque and reaches variable speeds of 50-120rpm in both directions allowing for two speed winch rotations. This compact, lightweight, and extremely simple to operate unit will drive your standard winches as if they were electric. Just pull the variable speed trigger and winch away. A flick of the switch reverses directions for 2-speed winching. Watch the main go up, watch the roller furler furl, tweek the jib, hoist the outboard. Move it from winch to winch and it will do the muscle work for you.

The WinchRite rests easily on its non-skid back when not in use and deploys quickly again and again without frequent recharging. The exterior housing is a composite of ABS and PC plastics resulting in superior durability and strength, with integrated non-skid rubber inlays. The integrated stainless steel winch cog contains a unique drive to prevent failure in both rotation directions and will not unthread or snap the retaining screw. Lots of power from its powerful Lithium Battery insures the job gets done quickly and with confidence.

Operating the WinchRite should always utilize the lowest speed of your winch to ensure maximum pull and least battery consumption. By using the lower speed of the winch less resistances is produced and greater torque. This will also reduce overheating of sealed motor/drive unit within the housing and increase life span.

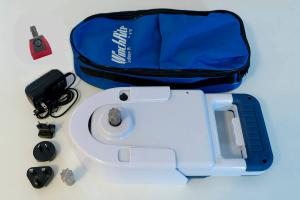

Our Standard WinchRite Package comes with
  • Winchrite Drive Unit
  • 2 Drive Cogs
  • 100-240v AC Charger
  • European Adapter
  • 12v DC Trickle Charger
  • Storage Tote Bag

Features

  • ABS and PC plastics exterior for superior durability and strength.
  • Integrated rubber inlay for anti-skid prevention.
  • Weather resistant design.
  • Designed specifically for use on a sailboat
  • Torque: Achieves 110+NM of torque to stall
  • Rotation: 50-120rpm via variable speed technology in both directions allowing for two speed winch rotations.
  • Winch cog contains unique drive to prevent failure in both rotation directions.
  • Cog will not unthread or snap the retaining screw.
  • Drive: Integrated standard winch cog of stainless steel.
  • Battery: Internal rechargeable 21.6V Lithium

Technical Specifications:

  • Weight: 6.2lb
  • Torque: 130nm/1150inlb-TESTED
  • Battery: 21.6 DC Lit-ion 2.8ah
  • Charger: 110/220 AC & 12v DC
  • RPM: 0-120+
  • Variable Speed: Yes
  • Reversible Motor: Yes
  • Design: Sailing/Cruising
  • Weather Resistant: Yes
  • Non-Skid Yes



Options and Accessories
Product SKU Captain's Price Options Qty
WinchRite 100-240 Volt AC Charger
(WR) AC1
$24.00
WinchRite 12 Volt DC Trickle Charger
(WR) DC1
$19.00
WinchRite Cog
(WR) COG1
$25.00
WinchRite Holder
(WR) HLDR
$34.95
WinchRite Storage Bag
(WR) SB1
$18.50
