Designed for sailboats over 30' (9m)

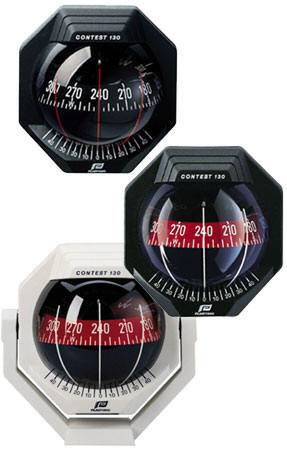

The Plastimo Contest 130 Compass is specifically designed for flush mounting or binnacle mounting. It features an exceptionally steady and crisp, legible 5.2" diameter card in black or red. The bracket version Contest 130 is particularly suitable for boats with enclosed cockpits. The bracket allows the compass to be mounted in any position and is also removable instantly.
The perfect card stability and exceptional magnification of the Contest 130 give the user an unparalleled quality of reading, by day or by night.
The Contest 130 remains perfectly legible from a 5 m distance.
WHY CHOOSE A CONTEST 130 COMPASS?
- The world-famous Plastimo crisp red or black card and the 5° graduation make reading very easy, even from afar.
- The cone-shaped card features horizontal and vertical graduations, thus allowing both front and top readings thanks to the lubber lines situated on either sides of the card
- Clearance of card : 45° when heeling, 35° when pitching
- 2 lubber lines situated at 45° on either side of the main lubber line, eliminate any risk of parallax error when reading from the side
- Built-in clinometeris is graduated every 5°
- Mounts in any bulkhead to 1.6''think, (0-10°)or inclined (10-25°) from vertical
- Bracket version suitable for boats with enclosed cockpits allowing compass to be mounted in any position and removed instantly for safe storage.
- Water tight and UV-resistant
- Scratch resistant dome
Also supplied as standard
- 12VDC lighting uses 2bulbs, 24V lighting available
- Protective cover
- Adhesive template for easy drilling and installation.
|
| |
CONTEST 130 |
| Boat size |
30 ft + |
| Compass card |
Double graduation : horizontal and vertical.
Conical card, graduated every 5°,
apparent Ø127 mm.
Heading numerals every 30°. |
| Mounting |
- Bulkhead (vertical or 10-25° inclined bulkhead)
- On a bracket·
- On the mast (with the addition of optional mast-mounting kit)
|
| Lubber lines |
3 lubber lines, at 45° |
| Heelmeter |
Graduated every 10° |
| Compensation |
Supplied as standard |
| Lighting |
12 Vcc. double lighting (upper and lower).
Red lighting on black card,
white lighting on red card. |
| Supplied with |
- Protection cover
- Drilling template
|
|
