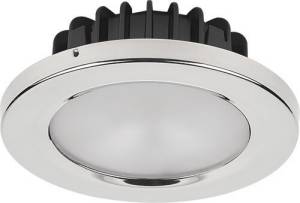

Featuring 2-wire power & dimming, Pool easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Pool offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Pool features a traditional raised-round bezel in several finishes. Pool is securely mounted with three screws and is ideal for hard ceilings (e.g. fiberglass or wood). It is a good choice for wet areas (e.g. hard tops, arches, walkway overhangs, shower stalls). Made in the USA and covered by a 5-year warranty!
Features
- Twist-on round stainless steel bezel design
- Convenient 2-wire power & dimming
- Bi-color dimming models controlled with single momentary switch Integrated current controlled drive circuitry
- Double gaskets for splash-proof protection
Specifications
| |
| Housing Finish/Material |
|
Black/Aluminum |
| Certifications & Compliance |
|
CE-EMC, ROHS |
| Integrated Switch |
|
No |
| Output Color |
|
Warm White |
| Lifetime Hours |
|
50,000 hrs |
| Class |
|
Class III |
| Dimmer Compatibility |
|
ILIM80130, ILIM80140 |
| Dimmer Control Interface |
|
Momentary Push-Button |
| Cut-out Dimensions |
|
2.40" (61mm)) |
| Trim Ring (Bezel) Dimensions |
|
3.43" (87mm) dia |
| Trim Ring (Bezel) Finish/Material |
|
Polished stainless steel |
| Halogen Equivalency |
|
25W |
| Input Voltage |
|
10-30VDC |
| Warranty |
|
5 Years / 1 Year Finish |
| Dimensions |
|
See dimensional drawing |
| Power Consumption |
|
4.7W |
| Recessed Depth |
|
1.05" (27mm) |
| Lens Material |
|
Frosted glass |
| Ingress Protection |
|
IP65 (applies only to frontal water exposure, i.e. Exposed surface) |
| Dimming Range |
|
5-100% |
| Luminous Flux |
|
183 lms |
| Driver |
|
Integrated |
| Install Location |
|
Exterior (hard tops, overhangs, showers) |
| Electrical Protections |
|
Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) |
|
2800K (White LED) |
| Color Rendering Index (CRI) |
|
85 |
| Approximate Ship Weight (lbs) |
|
1 |
|
