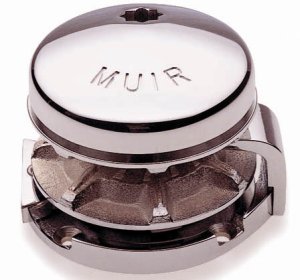

Atlantic 1000, Round Base, Low-Profile, 12V, 1000W
Features
- Manual Override System (MORS)
- Rope chain combination gypsy for rope and chain combination or chain only
- Quick release integrated swivel chain pipe cover
- Gypsy with capstan (VRC) or gypsy with low profile clutch top arrangement (VR)
- Heavy duty marine grade, dual direction motor in 12V & 24V DC, Hydraulic & AC
- Luxury chromed finish over marine grade bronze
- Independent gypsy and capstan operation
- Capstan models feature heavy duty knurled finish for increased grip
- Self-aligning gearbox/adaptor
- Stainless steel shaft
- Cone clutch/brake
- Stainless steel mounting bolts
- Shaft seal
- Lubricating grease nipple
- Clutch release handle
- Rope Chain Management System (RCMS)
- Installation/Operation booklet
Options
- Round base VR/VRC model (chain only)
- Extra deck clearance kit for any deck thickness
- Full range of accessories including chain, rope, anchors, anchor roller, chain stoppers, snubber kits and devil claws
- Electric & hydraulic operating options and accessories
- Auto anchor
| Product Details |
| Version |
Low-Profile/Round Base |
| Vessel Length |
32-42 ft (10-13m) |
| Voltage |
12VDC |
| Motor Wattage |
1000W |
| Max Load |
1100 lb (500 kg) |
| Work Load |
275 lbs (125 kg) |
| Amps Work Load |
100 |
| Max Line Speed |
48 ft/min (14.5 m/min) |
| Chain Sizes |
1/4BBB or HT, 5/16BBB or HT, 3/8BBB or HT |
| Rope Sizes |
1/2, 9/16, 5/8 in. |
| Finish |
Chromed Bronze |
|
